德国SIEMENS西门子阀门定位器6DR5210-0EG00-0AA0
单作用塑料外壳
了解更多产品点击:西门子产品主页
结构类型 | 紧凑型 |
设定点信号 | 4-20MA,带或不带HART7或者PROFIBUS PA 3.02/现场总线协议ITK6.0,具有链路活动调度器(LAS)功能 |
行程范围 | 3-130mm(根据要求,可以提供更大行程) |
旋转角度范围 | 30度-100度(可选180度) |
环境温度 | -30-80摄氏度(可选-40摄氏度) |
所需的空气量 | ISO 8573-1的Class3 |
防护等级 | IP66 NEMA 4X 可选IPX9K |
证书和保护等级 | 防爆:IECEX、ATEX、FM、CSA、NEPSI、INMETRO、EAC、KCS 整体安全性:CE、FM、UL 功能安全性:SIL2 船级认证:ABS、BV、GL、LR、DNV |
细节展示

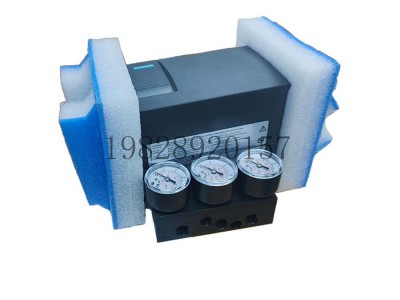

实物展示
关联产品
单作用 | 双作用 |
6DR5010-0NN00-0AA0 6DR5010-0NG00-0AA0 6DR5010-0NN01-0AA0 6DR5010-0NG01-0AA0 6DR5110-0NN00-0AA0 6DR5110-0NG00-0AA0 6DR5110-0NN01-0AA0 6DR5110-0NG01-0AA0 6DR5210-0EN00-0AA0 6DR5210-0EN01-0AA0 6DR5210-0EG00-0AA0 6DR5210-0EG01-0AA0 6DR5212-0EN00-0AA0 6DR5212-0EN01-0AA0 6DR5212-0EG00-0AA0 6DR5212-0EG01-0AA0 6DR5213-0EN00-0AA0 6DR5213-0EN01-0AA0 6DR5213-0EG00-0AA0 6DR5213-0EG01-0AA0 6DR5215-0EN00-0AA0 6DR5215-0EN01-0AA0 6DR5215-0EG00-0AA0 6DR5215-0EG01-0AA0 6DR5216-0EN00-0AA0 6DR5216-0EN01-0AA0 6DR5216-0EG00-0AA0 6DR5216-0EG01-0AA0 6DR5310-0EN00-0AA0 6DR5310-0EN01-0AA0 6DR5310-0EG00-0AA0 6DR5310-0EG01-0AA0 6DR5510-0EN00-0AA0 6DR5510-0EN01-0AA0 6DR5510-0EG00-0AA0 6DR5510-0EG01-0AA0 6DR5610-0EN00-0AA0 6DR5610-0EN01-0AA0 6DR5610-0EG00-0AA0 6DR5610-0EG01-0AA0 6DR5010-0NN00-0AA0-Z F01 6DR5010-0NG00-0AA0-Z F01 6DR5010-0NN01-0AA0-Z F01 6DR5010-0NG01-0AA0-Z F01 6DR5010-0NN00-0AF0 6DR5010-0NG00-0AF0 6DR5010-0NN01-0AF0 6DR5010-0NG01-0AF0 | 6DR5020-0NN00-0AA0 6DR5020-0NG00-0AA0 6DR5020-0NN01-0AA0 6DR5020-0NG01-0AA0 6DR5120-0NN00-0AA0 6DR5120-0NG00-0AA0 6DR5120-0NN01-0AA0 6DR5120-0NG01-0AA0 6DR5220-0EN00-0AA0 6DR5220-0EN01-0AA0 6DR5220-0EG00-0AA0 6DR5220-0EG01-0AA0 6DR5222-0EN00-0AA0 6DR5222-0EN01-0AA0 6DR5222-0EG00-0AA0 6DR5222-0EG01-0AA0 6DR5223-0EN00-0AA0 6DR5223-0EN01-0AA0 6DR5223-0EG00-0AA0 6DR5223-0EG01-0AA0 6DR5225-0EN00-0AA0 6DR5225-0EN01-0AA0 6DR5225-0EG00-0AA0 6DR5225-0EG01-0AA0 6DR5226-0EN00-0AA0 6DR5226-0EN01-0AA0 6DR5226-0EG00-0AA0 6DR5226-0EG01-0AA0 6DR5320-0EN00-0AA0 6DR5320-0EN01-0AA0 6DR5320-0EG00-0AA0 6DR5320-0EG01-0AA0 6DR5520-0EN00-0AA0 6DR5520-0EN01-0AA0 6DR5520-0EG00-0AA0 6DR5520-0EG01-0AA0 6DR5620-0EN00-0AA0 6DR5620-0EN01-0AA0 6DR5620-0EG00-0AA0 6DR5620-0EG01-0AA0 6DR5020-0NN00-0AA0-Z F01 6DR5020-0NG00-0AA0-Z F01 6DR5020-0NN01-0AA0-Z F01 6DR5020-0NG01-0AA0-Z F01 6DR5020-0NN00-0AF0 6DR5020-0NG00-0AF0 6DR5020-0NN01-0AF0 6DR5020-0NG01-0AF0 |
